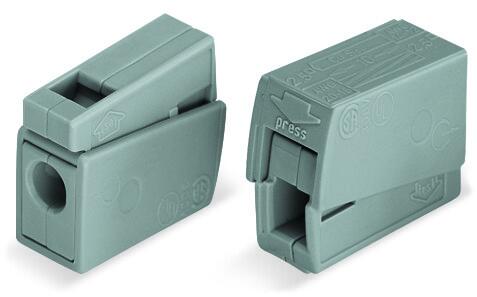

2.5mm Grey Lighting Connector, 100 Pack

Description

Lighting connector; push-button on lighting side; Lighting side: for all conductor types; Inst. side: for solid conductors; 224 Series; max. 2.5 mm²; Surrounding air temperature: max 60°C; 2,50 mm²; grey

Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

“Alu-Plus” Contact Paste Advantages:

• Automatically destroys the oxide film during clamping.
• Prevents fresh oxidation at the clamping point.
• Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
• Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5 mm² = 16 A
4 mm² = 22 A

Technical Specification:
Colour: Grey
Fire Load: 0.04MJ
Weight: 1.8g

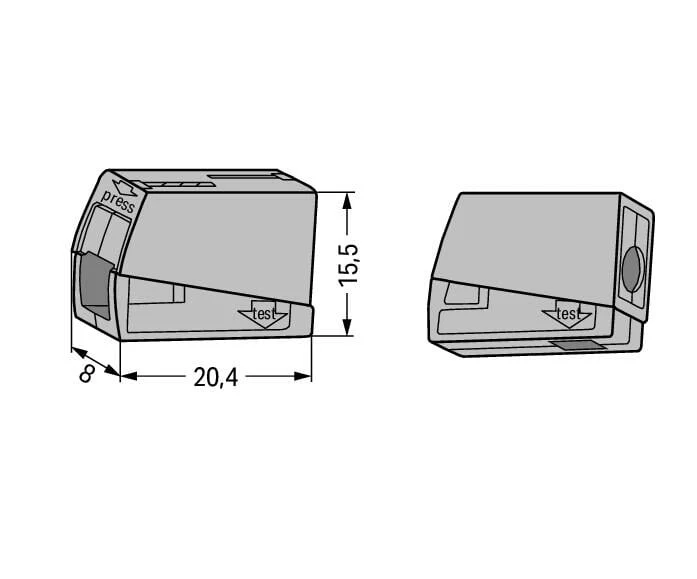

Width: 8 mm / 0.315 inches
Height: 15.5 mm / 0.61 inches
Depth: 20.4 mm / 0.803 inches
Safety Information: In grounded power lines
Continuous Operating Temperature: Up to 105°C
Ambient Temperature (Operation): +60 °C

Electrical Data:
Ratings per: EN 60664
Nominal Voltage (II/2): 400V
Rated Surge Voltage (II/2): 4kV
Rated Current: 24A
Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection Data:
Connection Points: 2
Total Number of Potentials: 1
Connection 1:
Connection Type 1: Installation Side
Connection Technology: PUSH WIRE®
Number of Connection Points: 1
Actuation Type: Push-in
Connectable Conductor Materials: Copper, Aluminum
Solid Conductor: 1 … 2.5 mm² / 14 … 12 AWG
Strip Length: 9 … 11 mm / 0.35 … 0.43 inches
Wiring Direction: Side-entry wiring
Connection 2
Connection Type 2: Lighting side
Connection Technology 2: CAGE CLAMP®
Number of Connection Points 2: 1
Solid Conductor 2: 0.5 … 2.5 mm² / 20 … 16 AWG
Fine-stranded Conductor 2: 0.5 … 2.5 mm² / 20 … 16 AWG

Technical Specification:

Pack Size: 100 Pack

Dimensions: Length: 20mm x Height: 16mm
Weight: 0.18Kg
