3 Way Pluggable Terminal Block Connector, 50 Pack

Description

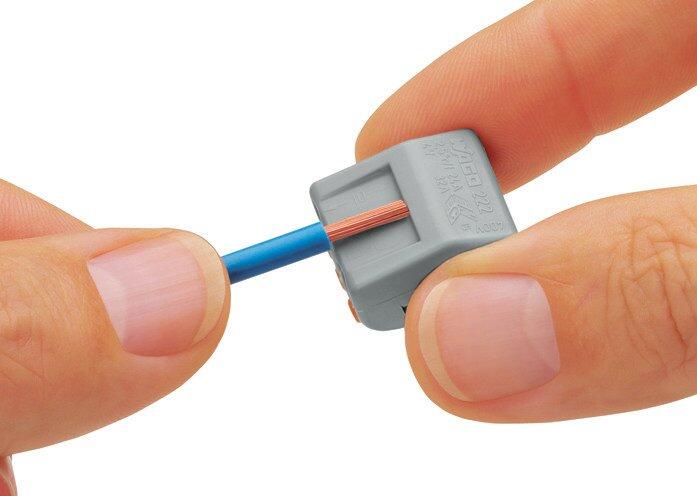

Classic Splicing Connector; for all conductor types; max. 4 mm²; 3-conductor; with levers; grey housing; Surrounding air temperature: max 40°C; 2,50 mm²; grey

Technical Specification:
Colour: Grey
Flammability Class per UL94: V0
Fire Load: 0.099MJ
Actuator Colour: Orange
Weight: 4.3g

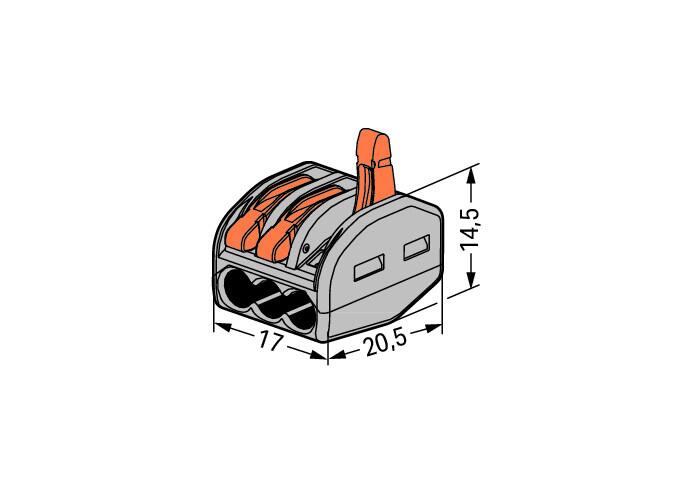

Width: 17 mm / 0.669 inches
Height: 14.5 mm / 0.571 inches
Depth: 20.5 mm / 0.807 inches
Safety Information: In grounded power lines
Continuous Operating Temperature: Up to 85°C
Ambient Temperature (Operation): +40 °C

Electrical Data
Ratings per: EN 60664
Nominal Voltage (II/2): 400V
Rated Surge Voltage (II/2): 4kV
Rated Current: 32A
Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection Data:
Connection Points: 3
Total Number of Potentials: 1
Connection Technology: CAGE CLAMP®
Actuation Type: Lever
Connectable Conductor Materials: Copper
Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
Strip Length: 9 … 10 mm / 0.35 … 0.39 inches
Wiring Direction: Side-entry wiring

Technical Specification:

Pack Size: 50 Pack

Dimensions: Length: 21mm x Height: 15mm
Weight: 0.215Kg
