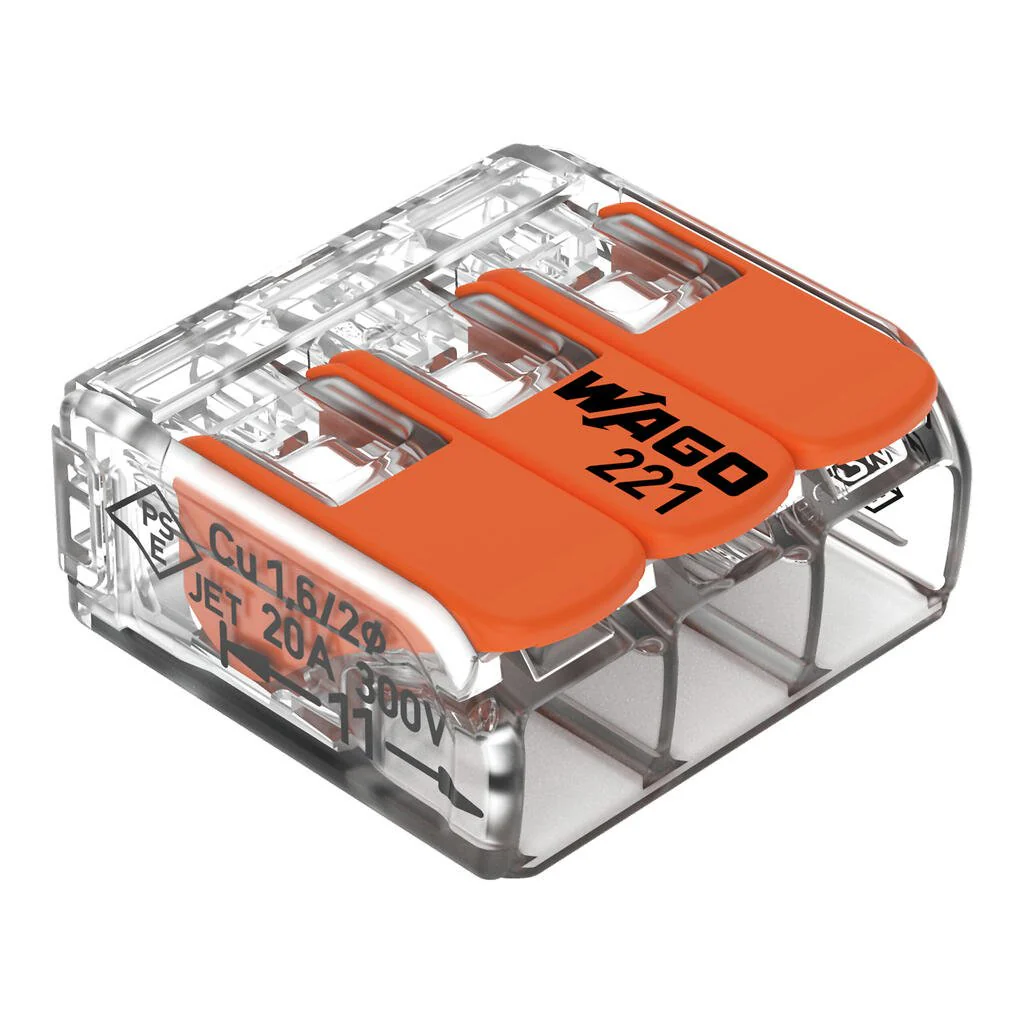

3 Way Terminal Block Connector, 50 Pack

Description

Compact Splicing Connector; for all conductor types; max. 4 mm²; 3-conductor; with levers; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent

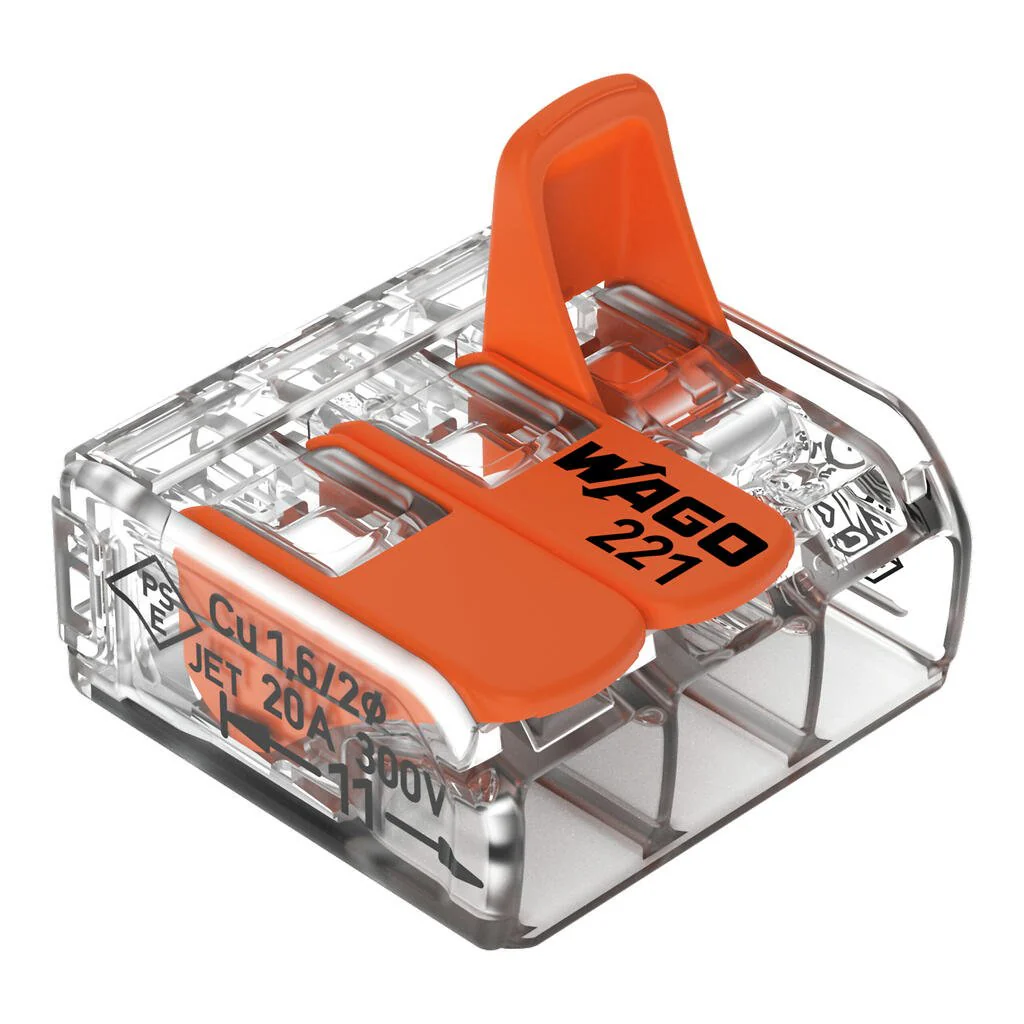

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Technical Specification:
Colour: Transparent
Insulation Material: Polycarbonate (PC)
Flammability Class per UL94: V2
Fire Load: 0.056MJ
Actuator Colour: Orange
Weight: 2.5g
Width: 18.8 mm / 0.74 inches
Height: 8.6 mm / 0.327 inches
Depth: 18.8 mm / 0.732 inches
Safety Information: In grounded power lines
Continuous Operating Temperature: Up to 105°C
Ambient Temperature (Operation): +85 °C
Temperature Marking per EN 60998: T85

Electrical Data:
Ratings per: EN 60664
Nominal Voltage (II/2): 450V
Rated Surge Voltage (II/2): 4kV
Rated Current: 32A
Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
Approvals per: UL 486C
Rated Voltage UL (Use Group C): 600V
Rated Current UL (Use Group C): 20A

Connection Data:
Connection Points: 3
Total Number of Potentials: 1
Connection Technology: CAGE CLAMP®
Actuation Type: Lever
Connectable Conductor Materials: Copper
Nominal Cross-section: 4 mm² / 12 AWG
Solid Conductor: 0.2 … 4 mm² / 24 … 12 AWG
Stranded Conductor: 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded Conductor: 0.14 … 4 mm² / 24 … 12 AWG
Strip Length: 11 mm / 0.43 inches
Wiring Direction: Side-entry wiring

Technical Specification:

Pack Size: 50 Pack

Dimensions: Length: 19mm x Height: 9mm
Weight: 0.125Kg
