Description

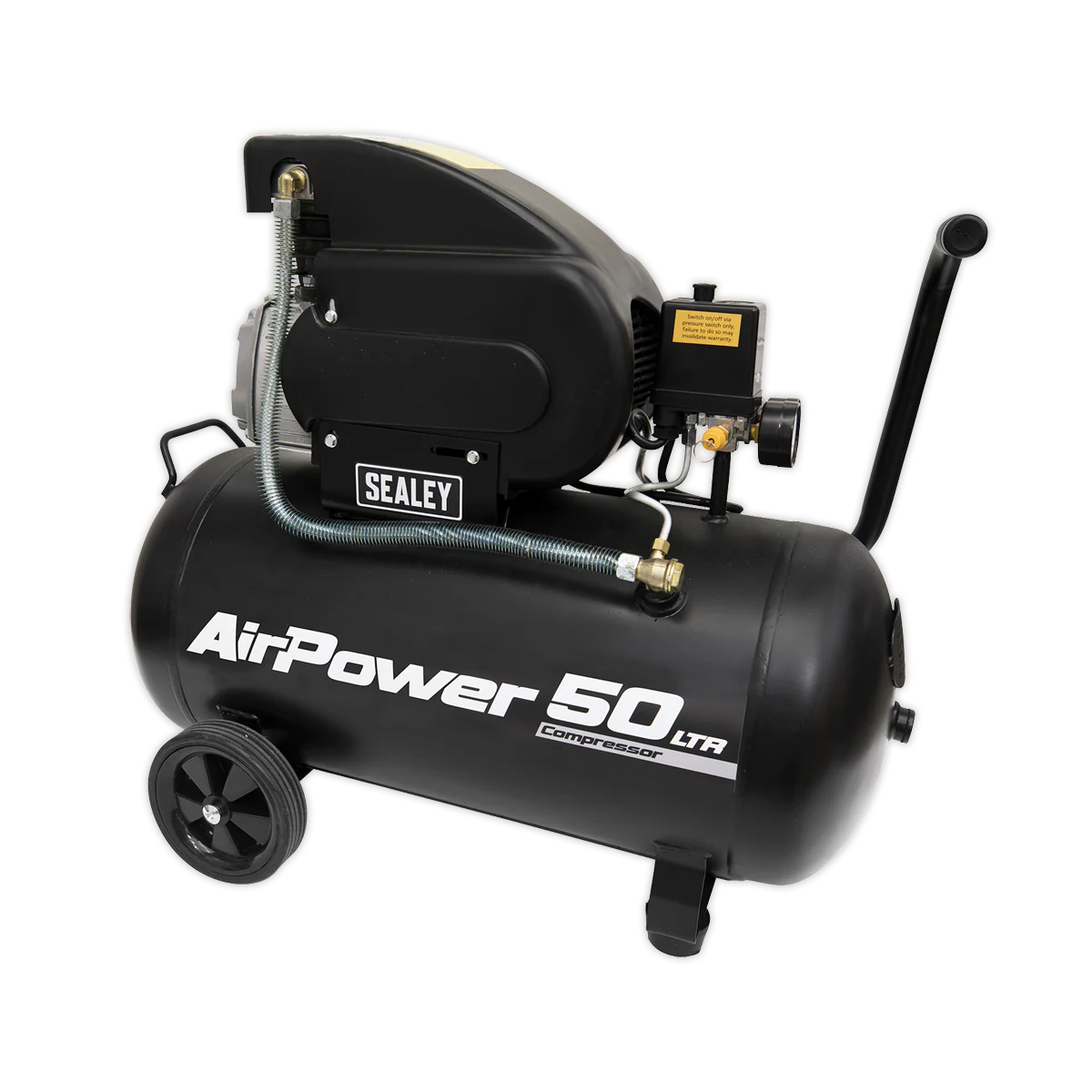

50L 2HP Direct Drive Compressor
- Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
- Suitable for general-purpose workshop applications.
- Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
- Precision welded receiver tank manufactured to meet Pressure Vessel Direction.
- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
- Fitted with a non-rewirable plug.
Technical Specification
- Air Displacement cfm(L/min): 6.8(193)
- Maximum Free Air Delivery cfm(L/min): 2.6(130)
- Maximum Pressure: 116psi(8bar)
- Minimum Rated Supply: 13A
- Motor Output: 2hp
- Nett Weight: 29KG
- Outlet: Quick Release Coupling
- Phase: 1ph
- Receiver Capacity: 50L
- Size (W x D x H): 650 x 390 x 669mm
- Supply: 230V
1 Year Manufacturer’s Warranty
