Description

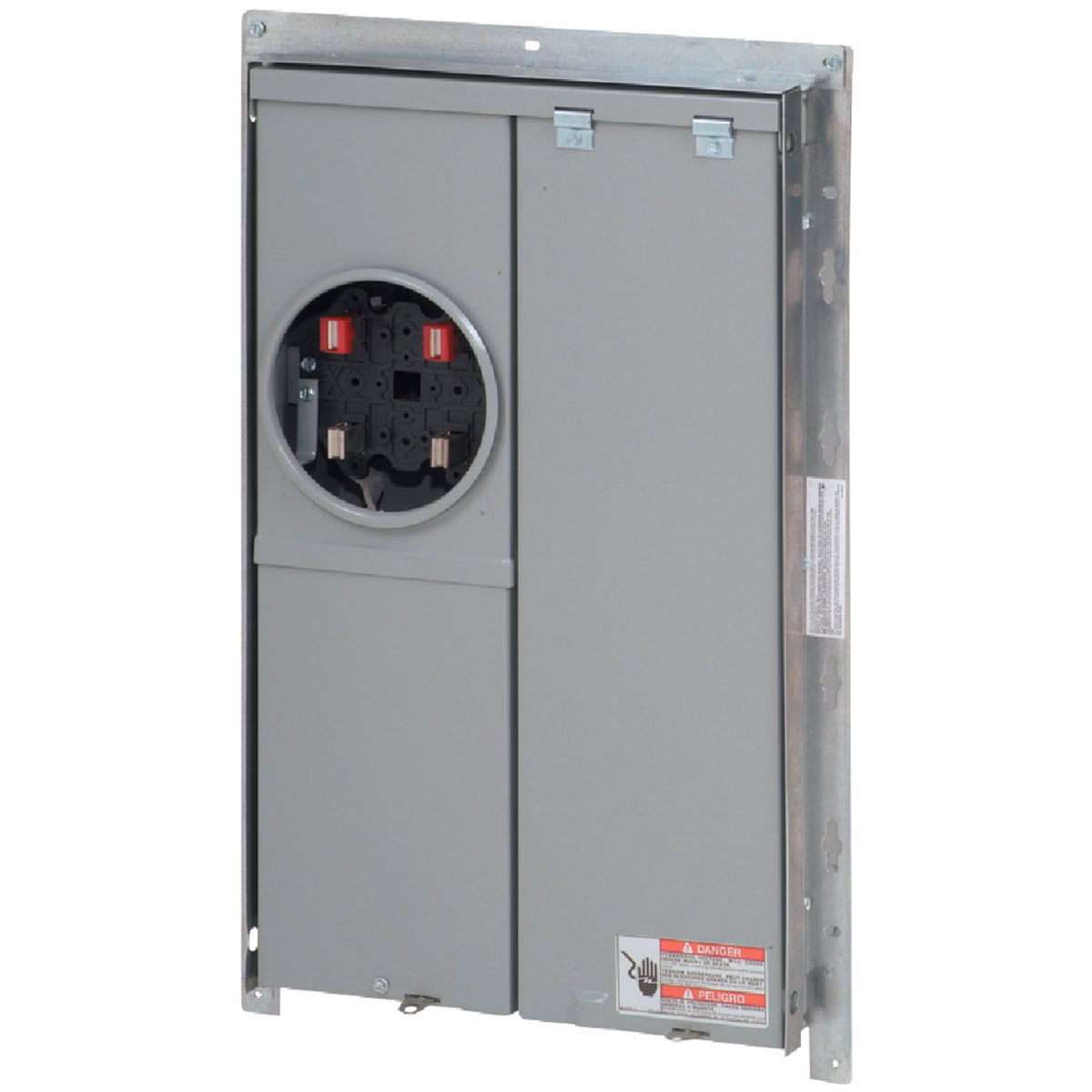

Combines meter mounting and a circuit breaker distribution section in a rainproof enclosure. In addition to residential installations, the panel can also be used for rural service entrance, mobile homes, and for temporary power on construction sites. Main breaker factory installed. Single phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. 120/240V, 10,000 AIC, NEMA 3R, rainproof, with RH hub provisions. Overhead or underground service. Raintight. UL listed.
| Amperage | 100 |
| Voltage | 120/240 |
| Series | BR/BD |
| Number Of Spaces | 12 |
| Max Number of Poles | 24 |
| Enclosure Type | Raintight |
| Mount Type | Flush |
| Phase | Single |
| Certification | UL Listed |
| Width (In.) | 17.25 |
| Height (In.) | 6.75 |
| Depth (In.) | 6.75 |
| Length (In.) | 26.75 |
| Brand | Eaton |
| UPC | 00782114890806 |
| Product type | Meter Breaker Panel |
