Description

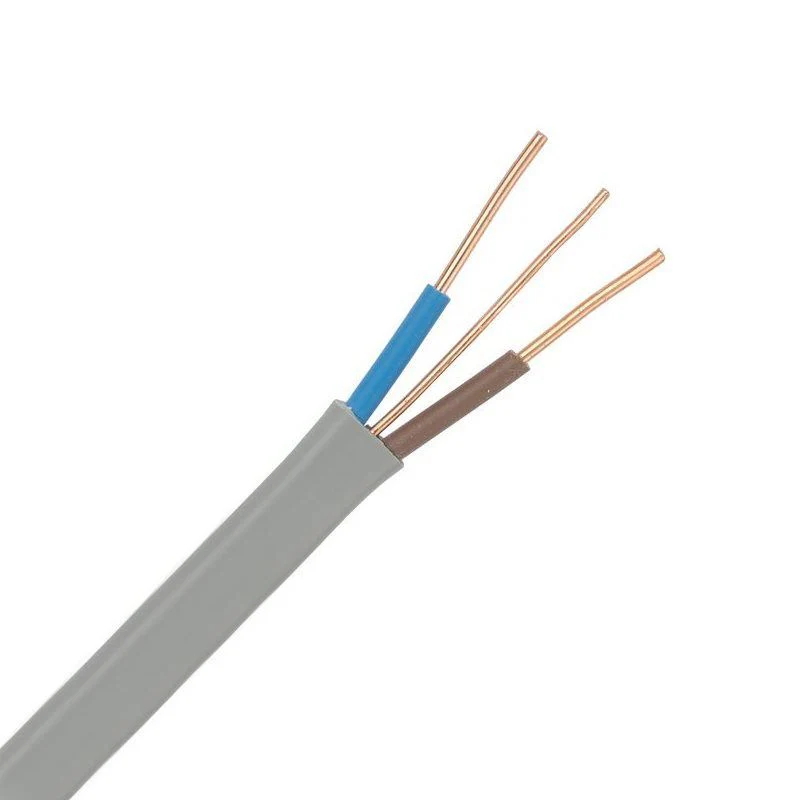

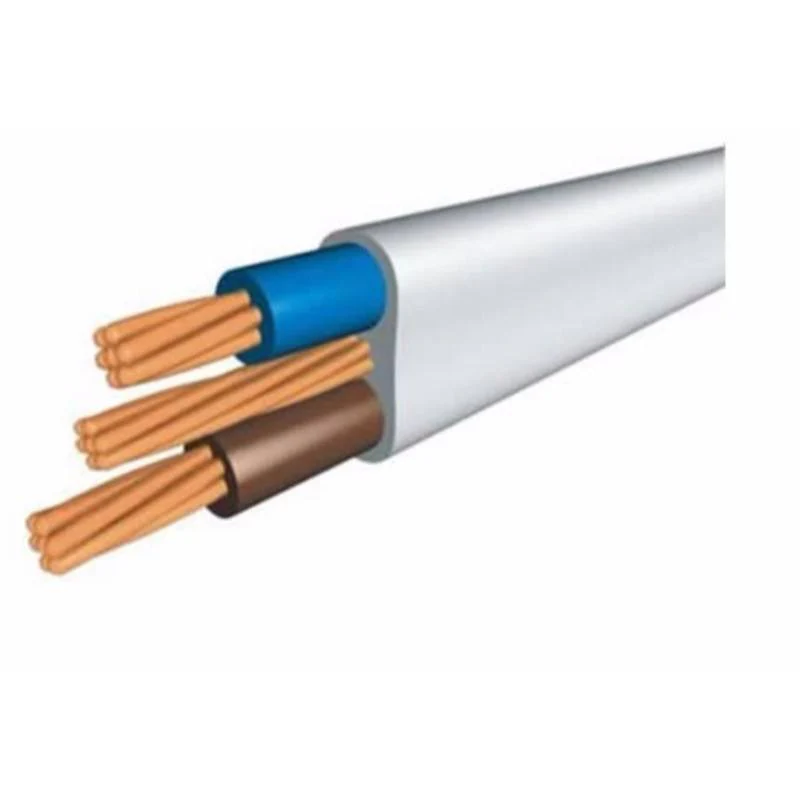

Zexum high-quality Twin & Earth Power and Lighting cable. A quality, well-constructed product which is easily stripped and worked with. General-purpose T&E cable, mainly used in house wiring, power and lighting circuits, such as fluorescent lighting and Office & Shop Lighting.
This product will only be supplied in the above pre-cut lengths i.e. If you purchase 2 x 10m you will receive 2 x 10m lengths.
Zexum is a UK manufacturer which sources quality cables made to the highest specifications from various sources both in the UK and the Rest of the world.
Main Features:
- 1.5mm? copper conductor size, Nominal Overall Diameter 8.8mm x 4.55mm
- 2 Core & Earth Cable with Brown (Replacement of red, Live) and Blue ( Replacement of black, Neutral) coloured cores as indicators with bare earth (to be sleeved with *Green/Yellow Earth Sleeving*)
- High quality solid plain copper cores, Insulated/Sheathed with Rigid, Harmonized Grey PVC.
- Suitable for voltages up to a maximum voltage of 300/500V and maximum current of 18A.
- Suitable for Temperatures between 0?C and +70?C
Technical Specification:
- Conductor Size: 1.5mm
- Cores: 2+E
- Core Colours: Blue, brown
- Conductor Material: Solid Copper
- Insulation: Harmonised Grey PVC
- Voltage: <3000/500V
- Max Load: 18A
- Operable Temperature: 0?C – 70?C
Conforms to BS6004 and BASEC approved.
1 Year Guarantee Included
