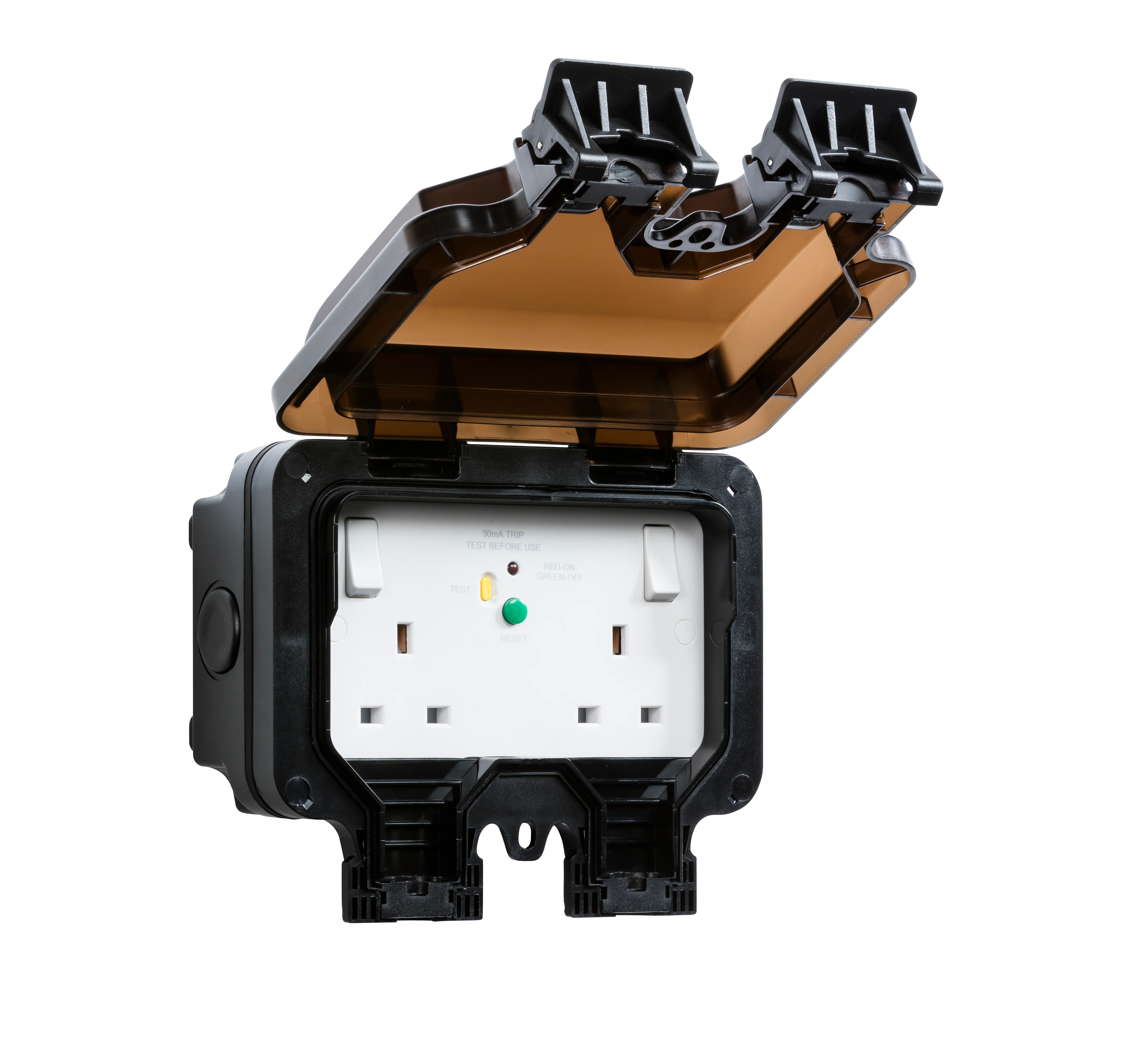

IP66 13A 2G DP RCD Switched Socket – Type A (30mA)

Description

Outdoor twin power socket with Type A RCD protection and a transparent lid. – Manufactured from robust, high impact grade polycarbonate for a long life – Black finish with a smoked black front casing for indicator visibility – IP66 / IK06 rated – RCD protected, double pole twin switched socket – Transparent user-friendly lid with large catch feature makes it simple and easy to open and close, lid can hold open when required for ease of use – Wider cable channels and casing will accommodate most plugs with thick over-moulded strain relief typically associated with outdoor products – Multiple 20mm cable entries/exits allow for optimum positioning – Outboard rockers – Double pole switches – Dual earth terminals Type A RCD for AC residual current and pulsating DC up to 6 mA. Suitable for equipment with electronic components such as IT equipment. Passive (latching) type, which will automatically reset after a power outage, without the need for manual resetting. – Tripping current (IΔn): 30mA – Trip time @ IΔn: 40ms

Technical Specification:

Projection (mm): 90
Earth Terminal: Yes
Terminal: Captive
Dimensions: Height: 159mm
Weight: 0.824Kg
Warranty: 1 Year
