Description

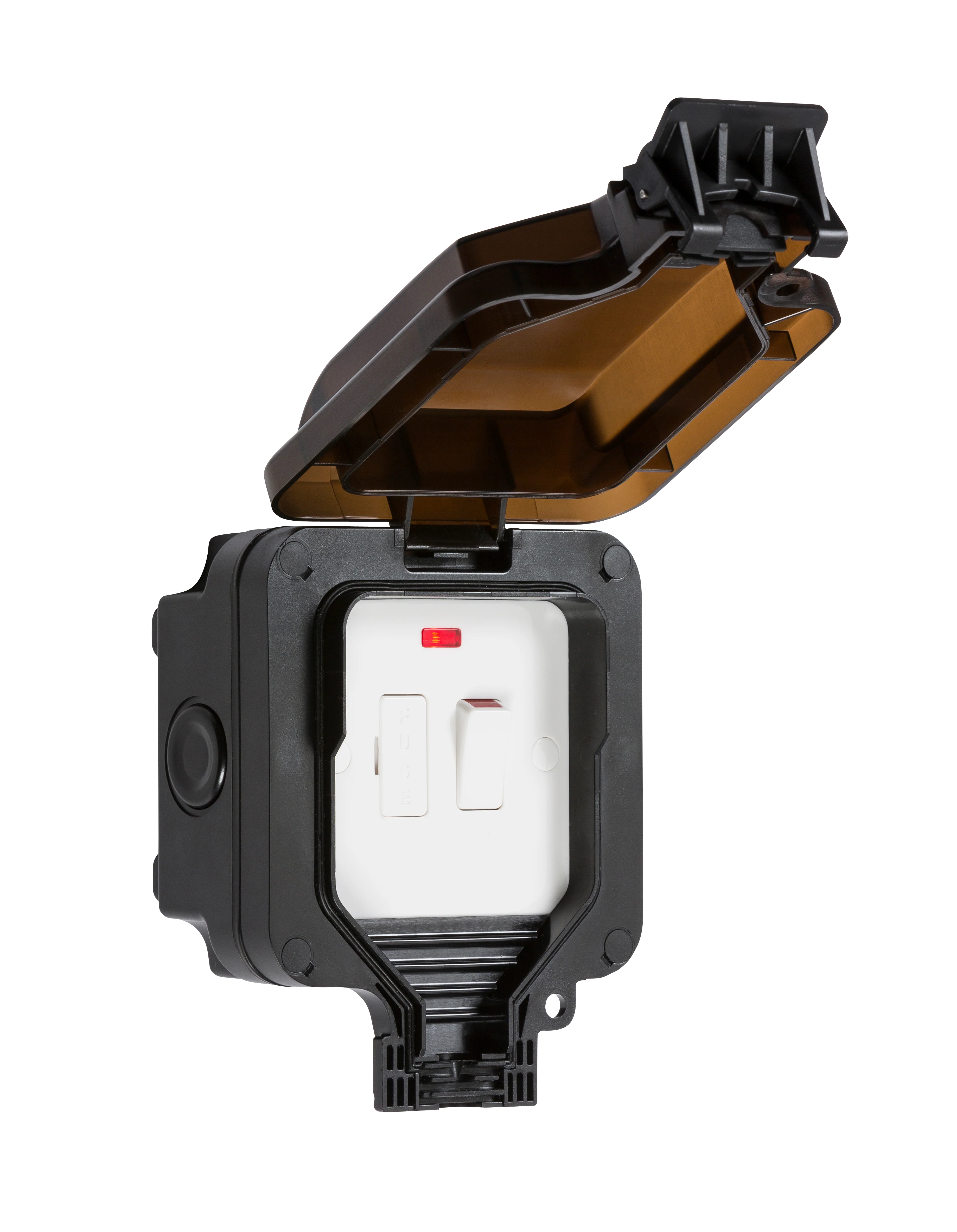

Outdoor fused spur solution with power on/off indication that can be seen through the transparent lid. Multiple 20mm cable entries/exits allow for optimum positioning. Wider cable channels and casing will accommodate most plugs with thick over-moulded strain reliefs typically associate with outdoor products.
Technical Specification
- Construction: Polycarbonate
- Finish: Black
- Dimensions:
- Height: 153mm
- Width: 110mm
- Projection: 84mm
- Weight: 311g
- Input Voltage: Mains 230V 50Hz
- Maximum Load: 13A
- Terminal Capacity: 3 x 2.5mm² or 2 x 4.00mm²
- IP Rating: IP66
- Impact Rating: IK06
- Class: Class I
- Manufactured in accordance with BS 1363
