Description

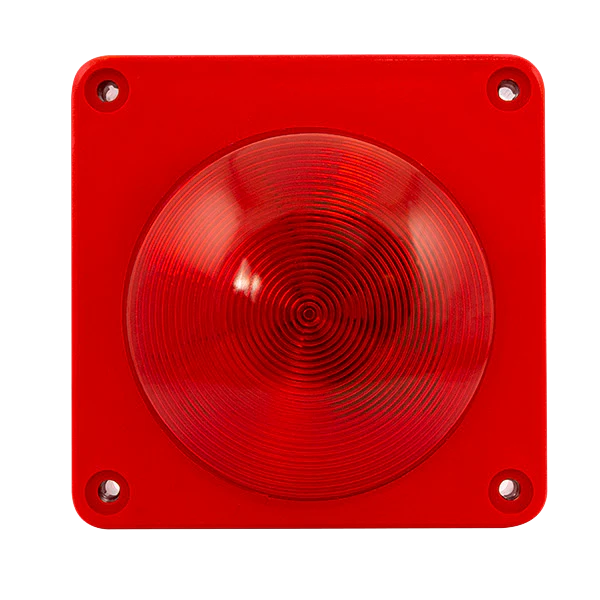

MAGDUO Strobe IP55
IP55 Ingress protection LED strobe Built-in End of Line function Device base included
Technical Specification:
Dimensions:
Width: 115mm
Height: 115mm
Depth: 70mm
Temperature Range:
Operating Temperature: -10°C to +50°C
Voltage Ranges:
DC Output from Mains Powered Panel: 25.5 to 35V DC
DC Output from Battery Powered Panel: 20 to 26V DC
Operating Current (Typical):
Quiescent: 428 uA (Typical)
Beacon: 5 mA
Device Loading Units:
Max Loading Units per Zone: 160 DLU
Beacon: 33.0 DLU
LED Operation:
EOL indication: 5 second interval
Beacon Operation:
Period: 1s
Flash Duration: 15s
Ingress Protection :
IP Rating : IP55
Dimensions:
