Description

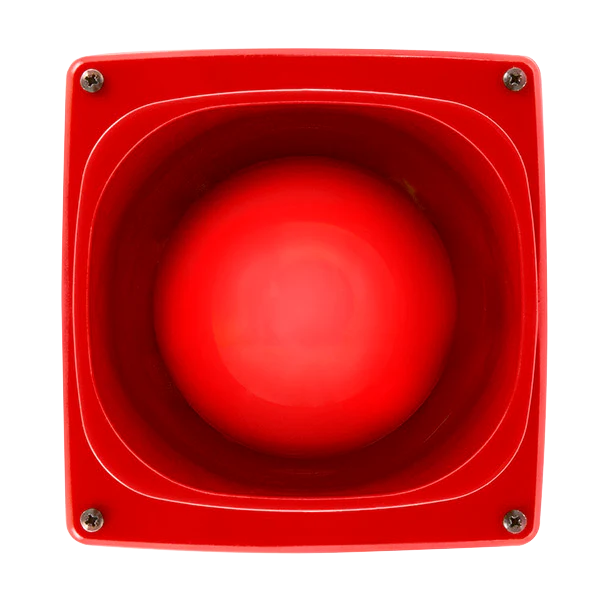

MAGDUO Sounder IP55
IP55 Ingress protection Volume level adjustment Built-in End of Line function Device base included
Technical Specification:
Dimensions:
Width: 123mm
Height: 130mm
Depth: 101mm
Temperature Range:
Operating Temperature: -10°C to +50°C
Voltage Ranges:
DC Output from Mains Powered Panel: 25.5 to 35V DC
DC Output from Battery Powered Panel: 20 to 26V DC
Operating Current (Typical):
Quiescent: 185 uA
End of line ON if applicable (in addition to Quiescent): 175 uA
Alarm Sounding – Sounder High: 14.5 mA
Alarm Sounding – Sounder Low: 12.6 mA
Device Loading Units:
Max Device Loading Units per Zone: 160 DLU
Sounder High: 14.5 DLU
Sounder Low: 13.0 DLU
Volume Level (@ 1m anechoic, Dual Tone):
Sounder High: 90+ dB(A)
Sounder Low: 65+ dB(A)
Ingress Protection :
IP Rating: IP55
Dimensions:
