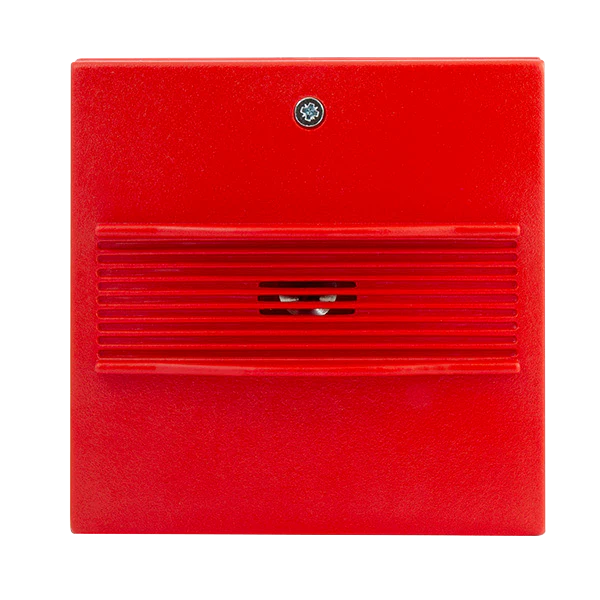

Wall Sounder for MAGDUO – Red

Description

MAGDUO Wall Sounder in Red
Wall mount red sounder Volume level adjustment Built-in End of Line function Device base included

Technical Specification:

Dimensions:
Width: 89 mm
Height: 89 mm
Flush Depth Protruding: 34 mm
Surface Depth: 62 mm
Temperature Range:
Operating Temperature: -10°C to +50°C
Voltage Ranges:
DC Output from Mains Powered Panel: 25.5 to 35V DC
DC Output from Battery Powered Panel: 20 to 26V DC
Operating Current (Typical):
Quiescent: 185 uA
End of line ON if applicable (in addition to Quiescent): 175 uA
Alarm Sounding – Sounder High: 14.5 mA
Alarm Sounding – Sounder Low: 12.6 mA
Device Loading Units:
Max Loading Units per Zone: 160 DLU
Sounder High: 14.5 DLU
Sounder Low: 13.0 DLU
Volume Level (@ 1m anechoic, Dual Tone):
Sounder High: 85+ dB(A)
Sounder Low: 65+ dB(A)
Ingress Protection :
IP Rating: IP 21C
